Morphological descriptions of the eggcases of skates (Rajidae) from the central-western Mediterranean, with notes on their distribution

Abstract

Eggcases of eight rajiform skates (Dipturus nidarosiensis, D. oxyrinchus, Leucoraja melitensis, Raja asterias, R. brachyura, R. clavata, R. miraletus and R. polystigma) present in the central-western Mediterranean are described, based on specimens obtained from fishery surveys. Eggcase features such as dimensions, horns and apron lengths, and presence/absence of lateral keels were crucial to discriminate the eggcases of the various species. Morphological and morphometric data, confirmed by the multivariate analysis, indicated that the eggcase of R. miraletus and L. melitensis were distinct from those of the other species for being unkeeled. Within the species having keeled eggcases, those of the genus Dipturus and R. brachyura were discriminated from the remaining group by having the largest dimensions and aprons. Sandy bottoms (<100–150 m depth) were identified as egg-laying sites (i.e. sites with females bearing eggcases in uteri) for many species belonging to genus Raja Raja asterias, R. brachyura, R. miraletus and R. polystigma). The finding of R. asterias and R. miraletus carrying eggcases yearly on the same sites, seems to confirm the theory that many rajid species demonstrate site fidelity, returning to the same depositional area on an annual basis. Some remarks on reproductive biology of these skates are also provided. The eggcase identification key reported here represents the first for the Mediterranean and may be useful, in the future, to identify egg-laying grounds of skates with a nonlethal method.

Background

The Rajidae family represents the most species-rich group among cartilaginous fish, having 30 genera and 245 valid species [1]. These demersal elasmobranchs often have limited, well-defined distributions, presumed low natural mortality [2] and are an important component of marine biodiversity. Many species live close to shore, generally at depths <100 m [3]. Some species are known to undertake seasonal migrations towards egg-laying grounds which maybe located close to shore [4], or over continental slopes, and usually discovered during exploratory surveys [5].

Among elasmobranchs, skates, together with the Scyliorhinidae family and the Heterodontiformes order, are the only strictly oviparous group [6] producing a tough eggcase that preserves the embryo development, ranging from months to years depending on the species [7, 8]. Most rajids show single oviparity (i.e., one embryo per eggcase), with pairs of eggcases (one from each oviduct) deposited during the spawning season [9]. The few exceptions include Raja pulchra [10] and R. binoculata [11], which can produce multiple embryos in each eggcase.

One of the greatest issues characterizing this family is historically linked to their taxonomy, often problematical, due to phenotypic similarity between some taxa and individual variability in others, and are responsible for their misidentification, related probably to biological and environmental characteristics. Another tool to distinguish skate species from each other, after examining their external morphology, is looking at their eggcases morphology. This feature is unique to these species and can be used for their identification [10, 12,13,14,15,16,17]. Moreover, the finding of sites where demersal eggcases are laid on the bottom gives information concerning distribution and reproductive ecology [16, 18], such as the spawning habitats.

Four genera of Rajidae live in the Mediterranean basin (Dipturus, Leucoraja, Raja and Rostroraja) with 16 possible valid species [19]. In spite of the fact that chondrichthyan reported landings in the Mediterranean Sea have considerably increased in recent years [20], many aspects of their reproductive biology are still unknown. Eggcases have been described for some skates in the Mediterranean basin [15, 22, 23], but there are few published data on their lengths and widths. Furthermore, regional identification keys based on eggcase morphology and comparative studies are lacking.

The aim of this work is to provide a detailed morphometric and morphological description of eight Mediterranean skate species eggcases, providing also comparisons with previously published data. In particular, seven of these were caught around Sardinian waters, central-western Mediterranean (Dipturus nidarosiensis recently reported for the Mediterranean [24, 25], D. oxyrinchus, Raja asterias, R. brachyura, R. clavata, R. miraletus and R. polystigma) and only one (Leucoraja melitensis) was found in the Sentinelle Bank (Sardinian Channel, off the Sardinian waters). Moreover, a specific key that could be useful in the identification of eggcases found on the sea bed, information on the distribution of active females per species and a brief description of the bottom biocenosis, useful to identify possible nursery sites for these vulnerable organisms, were provided.

Furthermore, given the common pattern for which an intraspecific latitudinal cline in elasmobranch sizes between Atlantic and Mediterranean species (e.g. [26]) exists, it could be hypothesized that the same dynamic could be reflected in the eggcase dimensions [27, 28]. For this reason, we investigated in this way, considering also the interspecific variability of eggcases, that may represent an adaptation to several kind of bottoms in order to minimize the competition for nursery grounds.

Methods

Active females (i.e. with eggcases in the uteri or extruding from the cloaca; henceforth referred to as active) of seven rajids present in Sardinian waters (central-western Mediterranean Sea), were collected between 2005 and 2016 during seasonal experimental surveys and commercial hauls (trammels and trawlings) at depths from 28 to 1700 m. Additional active individuals belonging to L. melitensis were caught in 2017 (February and March) during commercial trawlings in the “Sentinelle Bank” at 200 m of depth from a vessel registered in a Sardinian district (Cagliari).

For each individual, the total length (TL) was recorded in millimeters (mm).

For an accurate identification, eggcases were removed directly from the uteri of active females, except those of D. nidarosiensis specimens, which were collected from the sea bed. Eggcases were photographed using a Canon EOS 1100D, preserved in 80% ethanol and deposited in the collection at the Department of Life and Environmental Sciences, University of Cagliari, Italy. To assure a proper identification of a fully formed embryo found within an eggcase on the sea floor, presumably belonging to D. nidarosiensis, a piece of muscle was collected from the embryo and stored in absolute ethanol at −20 °C in order to proceed to the genetic identification. The COI-3 primers cocktail and PCR conditions from Ivanova et al. [29] were used to amplify the cytochrome oxidase I gene (COI).

As reported by Gordon et al. [30], the term “anterior” used in this work is considered to refer to the part that forms first in the oviducal gland. Ten morphometric measures (Fig. 1) were recorded in millimeters using a caliper following Concha et al. [31]: eggcase length (ECL, measured longitudinally between the anterior and posterior apron borders); eggcase width (ECW, the transverse width of the eggcase in its lateral plane included the keels); anterior and posterior apron length (AAL and PAL, the distance from the central body eggcase to the apron border); left and right keel width (LKW and RKW, the transverse width of the case from the eggcase keel junction to the keel edge); left and right anterior horn length (LAHL and RAHL, the distance from the anterior apron border to the horn tips); left and right posterior horn length (LPHL and RPHL, the distance from the posterior apron border to the horn tips). All measurements were then expressed in % of ECL and ECW in order to easily compare them to the others. The measurements in millimeters were also reported to contrast with those present in literature. In addition, the general morphology (shape and other features), fresh color (using the Pantone Matching System, PMS, Carlstadt, NJ, USA), texture and presence and position of adhesion fibres were recorded.

Fig. 1
figure 1

Morphometric measurements performed in the eggcases. AAL anterior apron length, ECL eggcase length, ECW eggcase width, LAHL left anterior horn length, LKW left keel width, LPHL left posterior horn length, PAL posterior apron length, RAHL right anterior horn length, RKW right keel width, RPHL right posterior horn length

Statistical analysis

The PRIMER (v6) package [32] was used to analyze the morphometric measures matrix. The outcomes were subjected to a Principal Component Analysis (PCA). The components that mostly contributed to the variance were identified. In addition, the SIMPER procedure (SIMilarity PERcentage Analysis) was used to identify those measures responsible for discriminating between groups. The observed differences between groups were tested using an analysis of Similarity Randomization Test (ANOSIM) [33]. Moreover, for each species, the geographical coordinates where females carried eggcases were visualized were provided using Mapsource software version 6.16.3 (Garmin). During fishing activities, the benthic community, associated with the bottom at each site, found in the net, was recorded. For each haul, all taxa were identified following the taxonomic guide for the Mediterranean [34] and in addition number and weight of every species (if possible) were registered in order to determine their abundance.

Results

A total of 177 eggcases of eight rajid species were examined and measured.

Eggcase description

Genus: Dipturus

Dipturus nidarosiensis (Storm, 1881) (n = 5)

During the sampling period, only one female carrying eggcases (not yet fully formed with only anterior horns and the apron visible) was caught in September 2015 at a depth of 991 m (Table 1). However, one eggcase containing a well-developed embryo and four empty eggcases were trawled at depths of 974–1212 m.

Table 1 Females carrying eggcases analyzed from 2005 to 2017, represented by species, total length (TL) range, depth-range and mean (mean ± SD) and sampling time

The embryo was a male (TL 193 mm) showing the typical features of this species: medium brown to grey-brownish dorsal surface and dark brown ventral surface, darker than the dorsal surface. The embryo’s sequence (658 bp long) was compared to 38 COI sequences of the genus Dipturus from Cariani et al. [35] and resulted identical to the specimens of D. nidarosiensis from the Mediterranean Sea (GenBank accession id: KT307210).

The eggcase appeared very large (Fig. 2a) reaching a maximum of 177 mm ECL (Table 2). The width was 43.9% of the length, giving a long rectangular shape (Table 3). Anterior and posterior aprons were well developed (25.1 and 20.2% of ECL, respectively): the first was straight, on the contrary, the latter was rounded and slightly shorter (Table 3). Both anterior and posterior horns were short (presumably damaged) and lateral keels were present and well developed (9.0% of ECW) (Table 3). It possessed adhesion fibrils attached to the keels, and in the dorsal and ventral surfaces.

Fig. 2
figure 2

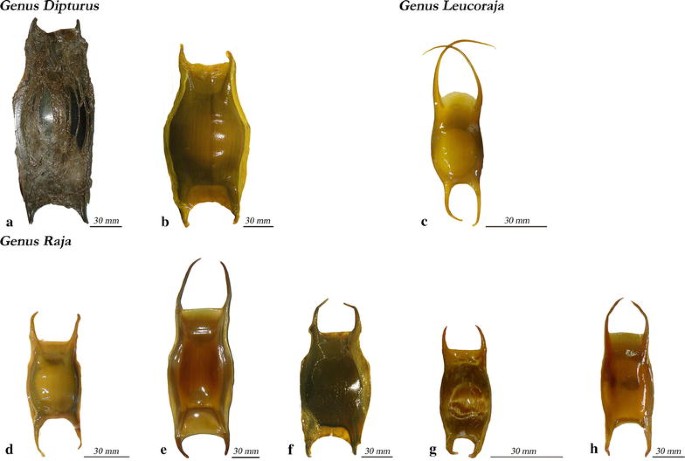

Eggcases belonging to the eight rajid species present in central-western Mediterranean. a D. nidarosiensis; b D. oxyrinchus; c L. melitensis; d R. asterias; e R. brachyura; f R. clavata; g R. miraletus; h R. polystigma

Table 2 Eggcase morphometric measurements of the eight rajid species analyzed
Table 3 General description of rajid eggcases

Dipturus oxyrinchus (Linnaeus, 1758) (n = 37)

Active females were found during all months of the year, except in April and September, at a mean depth of 500 m (Table 1).

This species (Fig. 2b) had a smaller eggcase than its congeneric D. nidarosiensis with a maximum of 116.2 mm ECL (Table 2). The eggcases had a rectangular shape (Table 3), since the ECW was 54.9% of ECL. Anterior and posterior aprons were well developed (25.1 and 14.2% of ECL, respectively), and the anterior one was longer and straighter in contrast to the posterior, which was more rounded and shorter (Table 3). Horns were short with anteriors slightly longer and tapered then the posterior ones (33.7 and 31.3% of ECL, respectively). Lateral keels were pronounced (9.6% of ECW) and had adhesive fibres. The fresh color varied from brown shades (PMS 4485, 1535) to greenish ones (PMS 3975) (Fig. 2b; Table 3).

Genus: Leucoraja

Leucoraja melitensis (Clarke, 1926) (n = 6)

Females with eggcases were caught in the Sentinelle Bank (N38° 03′ 314′′ E9° 41′ 998′′) in February and March at a depth of 200 m (Table 1). L. melitensis had small eggcases (45.0 mm ECL maximum, Table 2), rectangular in shape (ECW 54.0% of ECL). Anterior apron (13.5% of ECL) was longer then the posterior one (1.7% of ECL). The posterior horns were moderate and thin, differently from the anteriors, very long, thin and intersecting (103.9% of ECL). No lateral keels were observed and the surface was smooth and semi-transparent with no external fibres covering the surface (Fig. 2c). The fresh color was yellowish (PMS 110) with brown shades (PMS 125) (Table 3).

Genus: Raja

Raja asterias Delaroche, 1809 (n = 59)

Active females were found in late spring and summer (May to August) exclusively on the continental shelf (28–92 m depth) (Table 1). The eggcases (Fig. 2d) were small (55.4 mm ECL maximum, Table 2) with a rectangular shape (ECW 70.0% of ECL). Aprons were different to each other: the posterior was rounded and narrow (4.3% of ECL), and the anterior was straight and long (14.2% of ECL) (Table 3). Anterior and posterior horns were moderate in length and thin (49.6 and 46.0% of ECL, respectively). Lateral keels were pronounced (2.4% of ECW) with adhesive fibres (Table 3). The fresh color was yellowish (PMS 110) with brown shades (PMS 125) (Fig. 2d; Table 3).

Raja brachyura LaFont, 1873 (n = 12)

Active females were caught from May to August in shallow waters (30–62 m depth) (Table 1). The eggcases had a rectangular shape (ECW about 58.3% of ECL) and were large in size (maximum ECL = 133 mm) (Fig. 2e; Tables 2, 3). Posterior apron was rounded and pronounced and the anterior one was slightly longer and straighter (Table 3). The posterior horns were short and sturdy, while the anterior ones were thin and long (18.2% of ECL). Keels were developed (8.3% of ECW) and had attachment fibres. The fresh color was reddish brown in the eggcase body (PMS 469) and greenish (PMS 399) in the edges along the keels (Fig. 2e; Table 3).

Raja clavata (Linnaeus, 1758) (n = 10)

Active females were sampled during the summer (from June to August) and winter months (January and February) displaying a broad bathymetric distribution (42–473 m depth) (Table 1).

This skate had a medium size eggcase (maximum ECL = 67.5 mm, Table 2) with a rectangular shape (ECW 68.3% of ECL) (Fig. 2f). The eggcases had a rounded anterior apron and a straight posterior one (Table 3); the former was longer than the posterior one (17.8 and 10.6% of ECL respectively). Posterior horns were short and sturdy (35.3% of ECL), instead the anterior ones were thin and moderately long (50.4% of ECL). Lateral keels were pronounced (8.7% of ECW) and presented adhesive fibres (Table 3). To the naked eye, the eggcase surface appeared covered by several fibres; the fresh color varied from reddish brown (PMS 1395, 139) in the eggcase body, to yellowish in the edges (PMS 119) (Fig. 2f; Table 3).

Raja miraletus Linnaeus, 1758 (n = 34)

Active females were caught mostly in late spring and summer (May to August) and only a few times in winter (January), exclusively in the continental shelf (32–158 m depth) (Table 1).

The eggcases were small (Fig. 2g) with a maximum of 56.5 mm ECL (Table 2) and rectangular in shape (ECW 52.3% of ECL). The posterior apron was rounded and short (5.5% of ECL), and the anterior one was straight and three times the length of the anterior (15.2% of ECL). Posterior horns were short (34.5% of ECL) and sturdy, while the anteriors were thinner and slightly longer (38.3% of ECL) (Tables 2, 3). Lateral keels were totally absent and the adhesion fibres were attached to the horns (Table 3). The eggcase surface was covered with visible fibres; the fresh color varied from brown (PMS 161) to amber (PMS 138) (Fig. 2g; Table 3).

Raja polystigma Regan, 1923 (n = 14)

As with R. asterias and R. brachyura, active females were found only during the summer season (June to August) on the continental shelf (38–126 m depth) (Table 1). This skate presented a medium size eggcase (maximum ECL = 69.2 mm, Table 2) with rectangular shape (ECW 60.9% of ECL) (Fig. 2h). The eggcases had a rounded and narrow posterior apron and a moderately developed straight anterior one (3.2 and 15.0% of ECL, respectively) (Table 2). Posterior horns were moderate and sturdy (35.8% of ECL), instead the anterior ones were thin and had a moderate length (43.9% of ECL). Lateral keels were narrow (4.4% of ECW) and had adhesion fibres (Table 3). The fresh color had shades of brown (PMS 133, 161) in the eggcase body, and yellowish in the edges (PMS 126) (Fig. 2h; Table 3).

Statistical analysis

Eggcase measurements of D. nidarosiensis (all found on the sea bed) were excluded from this analysis because they could have been damaged during the recovery in fishing operations (especially the horns) and the measurements could have been different with respect to those found in uteri.

The results of the PCA (Fig. 3) highlighted the existence of the four groups with high dissimilarity values. In particular, group A (composed of eggcases of D. oxyrinchus and R. brachyura) was different from groups B (composed of eggcases of R. asterias, R. clavata and R. polystigma) principally in the eggcase dimension (ECL) and the anterior and posterior aprons length (AAL and PAL) and from group D (L. melitensis) in ECL and PAL. Group C (composed by eggcases of R. miraletus) was dissimilar to group B essentially for the lack of the keels (RKW and LKW) and to the other group (A) for eggcase length (ECL), width (ECW) and anterior horn length RAHL and LAHL). Finally, group D has discriminated from groups B and C especially for the anterior horn lengths (RAHL and LAHL) as confirmed also by the SIMPER routine (Table 4).

Fig. 3
figure 3

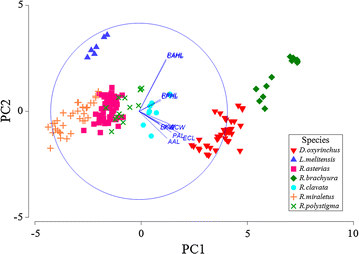

Principal components analysis (PCA) conducted of eggcase morphometric measurements

Table 4 Results of the SIMPER analysis routine considering the morphometric measures in the different groups

Based on the main eggcase characteristics of each species and their differences with the other ones and considering statistical analysis, we provided a species identification key based on the eggcase descriptions (Table 5).

Table 5 Identification key for rajid eggcases of central-western Mediterranean

Eggcase distribution

Females carrying eggcases of R. asterias and R. brachyura (Fig. 4) were caught mainly around the west coast in shallow waters (within a depth of 100 m) characterized by sandy bottoms in association with the seagrass Posidonia oceanica (Linnaeus) Delile 1813, the sea star Astropecten aranciacus (Linnaeus, 1758) and the seaweed Codium bursa Agardh, 1817.

Fig. 4
figure 4

Map of the study area where active females (filled circle) of the eight investigated species and eggcases (filled triangle) laid on the bottom were indicated

Raja miraletus active females (Fig. 4) were distributed all around Sardinia with the exception of the south-eastern part. The specimens preferred sandy substrata with low algal cover populated mainly by the irregular sea-urchins Spatangus purpureus (Müller, 1776) and the holothuroid Parastichopus regalis (Cuvier, 1817). The highest occurrence of females carrying eggcases was observed in the central western side, with more specimens caught on the same sites (N40° 11′131′′ E8° 23′155′′ at a depth of 80 m) over several years of sampling. Also R. polystigma females were sampled in sandy bottoms within the continental shelf (38–126 m), but given the few specimens collected (Fig. 4), it was difficult to establish if this species had a geographical preference. The same pattern was observed for R. clavata females (Fig. 4), poorly sampled over the years and at a wide depth range (42–473 m). D. oxyrinchus females carrying eggcases were observed around all the Sardinian Island (Fig. 4) at a mean depth of 500 m where the bottoms were mainly muddy and constituted by the bathyal biocoenosis as Axinella cannabina (Esper, 1794), Echinus melo Lamarck, 1816 and Gryphus vitreus (Born, 1778). Also the congeneric D. nidarosiensis seemed to prefer muddy substrata; the eggcases and the only one female carrying developing eggcases were found in deep-waters (>750 m depth) in the south-eastern part of the Island (Fig. 4).

No data about the benthic community associated to L. melitensis active were available, but preliminary information on their distribution was given (Fig. 4).

Discussion

Eggcase reports and information on the egg-laying rate for the overwhelming majority of rajids have received little attention in the Mediterranean context. In this regard, the present study provides updated eggcase descriptions and quantitative data on their sizes for developing regional and specific identification keys, useful in the recognition of eggcases found over sea beds, providing useful information on the distribution and reproductive biology of skates living in the central-western Mediterranean. We do report for the first time information on eggcases of the endemic L. melitensis, considered Critically Endangered in the Mediterranean [36].

The eggcases from the eight analyzed species exhibited peculiar morphologies between genera and even species. Despite some overlap in size between species, features such as horn and apron lengths, and presence/absence of lateral keels were crucial to discriminate the eggcase at species level. In particular, from morphological and morphometric analysis, actually corroborated by multivariate analyses, R. miraletus and L. melitensis stood out from all the others for having eggcases without keels. Moreover, within the species having keeled eggcases, those belonging to D. oxyrinchus and R. brachyura were discriminated to the remaining group for having the longest eggcases and aprons (ECL and AAL-PAL).

Considering the ECL (without horns), females of D. nidarosiensis possessed, overall, the biggest eggcases (153–177 mm ECL). Our results represent the first available qualitative and quantitative characterization for eggcases from this species in the Mediterranean basin.

In addition, considering the two distinct eggcase forms described in literature for the genus Dipturus [17], on the basis of our observations, it was possible to insert D. nidarosiensis and D. oxyrinchus in the D-II phylogenetic type. The latter, matching with other Dipturus species (e.g. D. gigas [13], D. trachiderma [16], D. batis [17]) was characterized by well-developed aprons and lateral keel united with the main portion rectangular in shape, differently from the D–I type showing close resemblance from other genera of the family Rajidae [17].

Generally, the length of the horns shows rather large intraspecific variations with the anterior horns longer than the posteriors [12, 37, 38]. In our specific case, eggcases of L. melitensis presented the longest anterior horns (intertwining) with a ratio anterior/posterior horns of 2.6, followed by R. brachyura egg cases with a ratio of 1.6, that enable them to be fixed to various structures as seagrasses, algae or debris. In other studies, similar, or even higher horn proportions were found in other species belonging to the family Rajidae as Atlantoraja cyclophora and A. platana [18], Leucoraja naevus [38], Rioraja agassizi [39] and Psammobatis scobina [37].

Almost all the analyzed eggcases were covered by adhesive fibers providing their camouflage and anchoring to marine debris, plants, mud and rock and may function as a barrier to predation [40]. As a general rule, eggcases covered by fibers were produced by mixed gland tubules (mucous and serous) situated deep in the terminal zone of the oviducal gland as reported for many Rajidae species (e.g. D. oxyrinchus, R. montagui, R. brachyura, R. clavata and R. undulata) by Maia et al. [38] and Marongiu et al. [41]. L. melitensis differed from the remaining species, because its eggcases were smooth, devoid of fibres on their surface. This feature seems to be common to other species belonging to the genus Leucoraja, as L. naevus, marked by the mucous gland tubules secretions (suphated acid mucins) of the terminal zone that could work as an important chemical defense against predation and pathogens [42, 43].

Furthermore, D. nidarosiensis, D. oxyrinchus and R. brachyura eggcases were the most robust. This feature was certainly related to their oviducal gland microarchitecture, characterized by a higher number of lamellae of the baffle zone [38, 41], if compared with the eggcases from R. miraletus characterized by a lower number of lamellae [41]. From an ecological perspective, these features, probably due to the length of the developmental period, may represent an advantage against predation and water turbulence [38] considering that their big dimensions did not allow a proper camouflage.

Sandy bottoms (<100–150 m depth) were identified as egg-laying sites (i.e. sites with females bearing eggcases in uteri) of many species belonging to genus Raja (e.g. R. asterias, R. brachyura, R. miraletus and R. polystigma). A similar behavior was observed for R. brachyura females in Portugal [38] and around the British Isles [44] as well as for R. miraletus in the south west of India where eggcases were found on the soft sea bed at a depth range of 112–123 m [45].

With the exception of R. polystigma, all other species showed a clear distribution in the western part of Sardinia, which is characterized by a wide continental shelf (tens of kilometres) and a continental margin dwelling between a depth of 150 and 200 m depth, contrarily to other sides (especially the eastern side), where the shelf is narrower and steeper [46]. Regarding R. clavata, it presented a high diversity of egg-laying habitats with a wide bathymetric range, which may differ in terms of bottom topography or sediment composition, as reported also by other authors in the Atlantic Ocean [38, 44]. Finally, D. oxyrinchus active females showed a clear preference for deep muddy bottoms (mean depth of 500 m) around Sardinia, confirming their bathyal habits as reported for the same waters by Mulas et al. [47]. The occurrence of D. nidarosiensis, exclusively in the south eastern part, was related to the deep trawl-surveys performed only in that area.

Throughout the analyzed period (12 years), R. asterias and R. miraletus active skates were found on the same sites every year, located in the central western coast of Sardinia, confirming the theory that many rajid species demonstrate site fidelity, returning to the same depositional area or nursery ground on an annual basis as reported for Bathyraja aleutica, B. interrupta and B. parmifera in eastern Bearing Sea [48]. Moreover, this finding could also suggest the existence of possible nursery areas, as recently observed for oviparous species as R. clavata and Galeus melastomus [49] and Scyliorhinus canicula [50] around Sardinian waters.

Because of their inherent low fecundity and slow growth rates, skates may reproduce with distinct seasonal pulses, over protracted periods, or in some cases continuously throughout the year [51, 52]. In this regard, our results suggested a continuous reproduction throughout the year for the deeper D. oxyrinchus confirmed by the presence of spawning capable females during all seasons with a predominance of active individuals in autumn and winter months (late September to late March) [53]. A reproduction restricted mainly to summertime was described, instead, for the other species (except for L. melitensis for which no sufficient reproductive data was available), as also confirmed by other studies in Italian waters [54, 55]. Year-round reproduction may be a strategy to compensate the high maternal energy investment and late maturity typical to the elasmobranchs. Given the generalized high biological productivity in the summer period, a distinct pulse of egg deposition during this period could represent an advantage for those species with shallower habits in order to maximize the fitness.

We also observed that eggcase dimensions seem to change in relation to geographical area. From a comparison with the available literature from the Mediterranean (Table 6), our samples were similar in sizes (ECL and ECW) to those observed in other areas of the basin. Instead, eggcases analysed here (excluding the endemic species) seemed to be smaller than those described in the Atlantic studies (Table 6). The only exception was represented by R. brachyura, showing eggcases slightly larger than the Atlantic ones, probably due to similar body dimensions between the two areas [55]. This pattern was reported also for other chondrichthyan eggcases (e.g. G. melastomus, [28]) and it could probably be due to the intraspecific latitudinal cline in elasmobranchs size in which Atlantic specimens reach a bigger body size than Mediterranean ones [26, 39, 68].

Table 6 Eggcase dimensions reported in several geographical areas by latitudinal clines

In conclusion, given the absence of Mediterranean eggcase descriptions, the present study should shed light on the taxonomy, distribution and reproductive habits of many Mediterranean skates. Indeed, this identification key could act as useful tool for non-invasive identification of eggcases through image analysis (i.e., ROV imaging), which have proven to be an efficient tool for identifying nursery ground and delineate ecological traits of species. In addition, since knowledge of the location of nursery grounds for elasmobranchs is practically nonexistent [50] and given the most recent policy approaches to the protection of marine ecosystems (e.g. the Marine Strategy Framework Directive, MSFD; 2008/56/EC currently in force in European seas), the identification of essential fishing habitats such as nursery grounds of sensitive species like skates represent an indispensable component to protect and manage.
